144 LEDs/M Addressable RGBW NeoPixel LED Strip

144 LEDs/M Addressable RGBW NeoPixel LED Tape

NeoPixel Digital RGBW LED STRIP 144 LED 1M

● Working Voltage: DC5V ● Led QTY: 144leds/M

● Led Type: SMD5050 ● IC QTY: 144pcs SK6812RGBW

● Pixel QTY: 144pixels/m ● PCB Color: white/Black color

● Power Consumption: Max 57.6W/M ● Brightness Level: 256 level

● Cuttable length: 0.27" (0.69cm) are cuttable

● Emitting Color:RGBW,RGBWW,RGBNW

● Waterproof IP grade:silicon tube IP67/IP65 glue sealing/ non-waterproof

http://www.greeled.net/144leds-m-sk6812-led-strip.html

GS8208 WWA LED ROPE TAPE

12v GS8208 warm white+pure white+amber 3-in-1 led strip

Working Voltage: DC12V

PCB: white/Black PCB,12mm

LED QTY: 60eds/m

IC Type: GS2808,(each led with one GS8208 IC external)

Emitting Color: Amber+warm white+Pure white three chip in one SMD5050

each led addressable Breakpoint continuous Function ,single pixel damage, the next pixels will keep working,

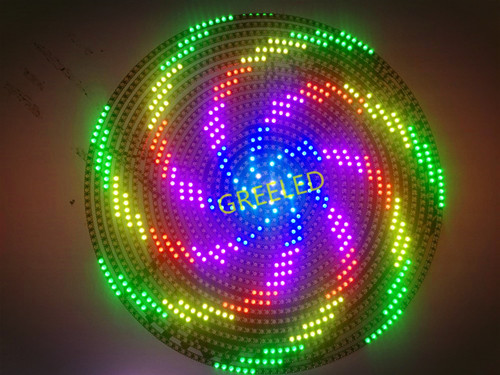

1629leds sk6812 digital rigid led ring

1629leds ws2812b sk6812 rigid led ring

1629leds RGB led circle ws2812b sk6812

IC Type: SK6812 chip built in

Working Voltage: DC5V

Indiviual ring width: 6mm

Totally 20pcs different diameters circle rings, 1629leds total



GE8812 chip and capacitor embedded led strip

GE8812 IC&Capacitor Built In LED Strip

GE8812 chip&capacitor integrated led tape

Parameter:

1. Input DC5V, SMD5050,60leds per meter, Each led addressable

2. GE8812 chip built in, Capacitor built in, Transmission protocol compatiable with sk6812,ws2812B

3. Emitting color RGB, Taiwan epistar high lum chip

4. 3oz PCB, Black or white PCB, 10mm width

5. IP rating, IP20,IP65,IP67,IP68.

Datasheet: https://drive.google.com/file/d/1-8I6m8JI-oSDdSn1g0egp1x55YhUA8rn/view?usp=sharing

GE8812 LED Chip: http://www.gree-leds.com/productshow.asp?ArticleID=942V7617RS

GE8808B GE8812 GE8822 GE8812B Chip Built in Embedded Pixel Led

1. 12v GE8808B chip built in SMD5050 pixel led

     6Pins GE8808B; Break-point continous function; Input voltage DC12V ; Epistar chip; 3-channel GE8808B Chip built in; Compatiable with GS8208;

2. Embedding capacitor GE8812 led

    4Pins GE8812; DC5V; Epistar chip and capacitor built-in; GE8812 Chip built in; Compatiable with SK6812/WS2812B

3. high refresh GE8822 Programmable led

   6Pins GE8822; high refresh; DC5V; Epistar chip; GE8822 Chip built in; Compatiable with SK9822/APA102

4.  5V GE8812B Chip Embedded Addressable LED

    4Pins GE8812B; DC5V; Epistar chip; GE8812 Chip built in; Compatiable with SK6812/WS2812B

12v 6pin GE8808B Break-point continous Pixel led

GE8808B break-point continous SMD5050 LED

Parameter:

1. 6Pins GE8808B(Break-point continous function)

2. Input voltage: DC12V

3. Epistar chip

4. IC Type:GE8808B Chip built in

5. Procotol: Compatiable with GS8208

6. Package Type: SMD5050

7. One IC Control One LED

8. Package:1000PCS/REEL

9. Emitting Color: RGB

10. white mask and black mask are available

Feature:

The GE8808B is a 3-channel constant current LED drive with resumable data transfers and internal display patterns. There are three open-drain constant current outputs, with a build-in PWM of grayscale. The range of input power is from +9V to +15V, and voltage-endurance of LED port is +12V. There is a built-in 12bits GAMMA correction module. PWM maximum refresh frequency is 8Khz, the GE8808B use the e-RZ (extended return to zero code)as the signal transmission mode,which can control the output current channel by channel and cascade infinitely,it provides two-signal data input as redundant control, which ensures the transmission of the signal if any single chip damages.In the displays the built-in display patterns that is suitable for those applications without a controller. There is the built-in power-on and power-off protection in the drive,which can enhance the service life of the chip. It alsohas the automatic test function while power on, working environment is from -40 ° C to + 85 ° C.

Datasheet: https://drive.google.com/file/d/1mHV13L2kn7uAIWmg2OFf0heovfCSoFRX/view?usp=sharing



12V individual-Pixel tape

60leds/m 12v WS2815 individual pixel tape

Model No: GE60RGB2815A (Non-waterproof)

GE60RGB2815B(IP65 waterproof)

GE60RGB2815C(IP67 waterproof)

DC12V individual addressable RGB led strip

WS2815 is built in electric capacitor

SMD5050 60leds/m, Each led addressable

10mm width PCB, White or Black PCB

Breakpoint continuous, In case of single pixel damage, the next pixels will keep working

Achieve 256 level brightness display,

and 16777216 color true color display port scanning frequency at 2 KHz/s.

IP Rank:IP20/IP65/IP67

Length: 5meter/Roll

DMX512 RGBW LED Strip

24v 60leds/m dmx rgbw led strip

DMX512 RGBW Led tape rope Light

1. RGBW, 4 in 1 full colour DMX led tape.

2. DC24V Input, SMD5050,60LEDS/M.

3. 14.8mm width PCB, White/Black color

5. Emitting Color: RGB+Warm white,RGB+Natural white,RGB+Pure white

6. UCS512A IC compatiable with Stardard DMX512 Protocol

7. Control mode is differential parellel,builting in RS485 decoding module.

8. IP21,IP65,IP67,IP68 are availble

Specification Download Link:

https://drive.google.com/file/d/1mfUE3wdX1U5X_dIE4bGGK0jPQYNsdUhl/view?usp=sharing

10m constant current RGBW led strip

5050RGBW CC LED STRIP

Model No.: GE60RGBW5050CCA (Non-waterproof)

                  GE60RGBW5050CCB (IP65 waterproof)

                  GE60RGBW5050CCC (IP67waterproof)

1. Work Voltage: DC24V

2. LED QTY: 60Pcs RGBW Chip-buit-in SMD5050

3. PCB width:12mm, white color

4. Led view angle: 120 degree

5. Power comsuption: Max 19.2W/M

6. Package: 5M/Reel

7. white color temeperature: 2700-3300K 4000-4500K 6000-6500K

8. Wave Length:     R: 620-630nm      G: 520-530nm      B: 460-470nm

9. Lumen:    RGB--180Lum/M     W--320Lum/M   NW--320Lum/M  WW--300Lum/M

Compatiale with most RGB controller

Constant current circuit design

10meter working length in series

SMD5050 4 chips in one

WS2812B SK6812 RGB RGBW DIGITAL LED RING

SK6812 RGB RGBW DIGITAL LED RING
WS2812B RGB RGBW LED RING
WS2812B SK6812 RGB/RGBW DIGITAL RING

IC Chip: WS2812B/SK6812

Emitting color: RGB/RGBW/3000K/4000K/6000K are available

Working Voltage: 5V

Interface: VCC,GND,DIN,DOUT

PCB color: whitePCB/blackPCB

Platform: Arduino Microcontroller with Arduino library Led Quantities:1LED/8LED/12LED/16LED/24LED/32LED/40LED/48LED/60LED/

241LED=(1+8+12+16+24+32+40+48+60)=9pcsRING

Datasheet Download Link:

https://drive.google.com/file/d/1qCfXBFQ_MElwImZ7eXmhcS_wKoFyY2mp/view?usp=sharing

GE8812 RGBW chip embedded addressable led strip

GE8812RGBW led strip is using the 4 channels GE8812RGBW leds as the lighting source,each GE8812RGBW chip built in led is an individual rgbw pixel,it can be dmx controlled with the dmx console with the decoder,or the matrix software,single chip as the Arduino. The GE8812 led is updated of SK6812.
Mainly Features (30leds/m)
● Working Voltage: DC5V                           ● Led QTY: 30leds/M
● Led Type: SMD5050                              ● IC QTY: 30pcs GE8812RGBW embedded
●  Pixel QTY: 30pixels/m                            ● PCB Color: white/blackcolor
● Power Consumption: Max 12.0W/M        ● Brightness Level: 256 level
● Cuttable length: 1.31" (3.33cm) are cuttable
● Emitting Color: RGBW,RGBWW,RGBNW
● Waterproof IP grade:silicon tube IP67/IP65 glue sealing/ non-waterproof

Mainly Features(60leds/m)
● Working Voltage: DC5V               ● Led QTY: 60leds/M
● Led Type: SMD5050                   ● IC QTY: 60pcs GE8812RGBW embedded
●  Pixel QTY: 60pixels/m              ● PCB Color: white/Black color
● Power Consumption: Max 24W/M        ● Brightness Level: 256 level
● Cuttable length: 0.65" (1.66cm) are cuttable
● Emitting Color: RGBW,RGBWW,RGBNW
● Waterproof IP grade:silicon tube IP67/IP65 glue sealing/ non-waterproof

Mainly Features(144leds/m)
● Working Voltage: DC5V                           ● Led QTY: 144leds/M
● Led Type: SMD5050                           ● IC QTY: 144pcs GE8812RGBW embedded
●  Pixel QTY: 144pixels/m                            ● PCB Color:  white/Black color
● Power Consumption: Max 57.6W/M         ● Brightness Level: 256 level
● Cuttable length: 0.27" (0.69cm) are cuttable
● Emitting Color:RGBW,RGBWW,RGBNW
● Waterproof IP grade:silicon tube IP67/IP65 glue sealing/ non-waterproof

Datasheet link as below:
GE8812RGBW datasheet: https://drive.google.com/file/d/0B97rs4obIwdZOFlTdVVLSEQ1eVU/view?usp=sharing

RGBW led strip datasheet:
https://drive.google.com/file/d/0B97rs4obIwdZVjZ2cGUtX2xqSE0/view?usp=sharing

4-in-1 RGBW SK6812 Addressable led strip

4-in-1 RGBW Addressable LED Strip SK6812

4-in-1 SK6812 RGBW Addressable LED Strip
SK6812 chip built in RGBW led strip
4 in 1 sk6812 chip embedded addressable led strip
chip embedded digital led tape
RGBW LED Addressable strip with SK2812 chip built in
RGBW 4-in-1 digital led rope

The strip is using the 4 channels sk6812rgbw leds as the lighting source,
each sk6812rgbw led is an individual rgbw pixel,
it can be dmx controlled with the dmx console with the decoder,
or the matrix software,single chip as the Arduino....

Model No. : GEN60RGBW6812A (non-waterproof)
                    GEN60RGBW6812C (IP67 waterproof)
Working Voltage: DC5V
LED:  SMD5050 RGBW LED, with SK6812 Chip built in
Led QTY: 60leds/M
Led Type: SMD5050
IC Type: SK6812 Chip Built in SMD5050 RGBW LED
Pixel QTY: 60pixels/m ,each led addressable
Dimension: 5000mm*12.0mm*4.0mm (waterproof)
                   5000mm*10.0mm*2.5mm(non-waterproof)
PCB Color: White color
Brightness Level: 256 level
Emitting Color: addressable full color

30leds/m, 60leds/m,72leds/m,96leds/m and 144leds/m are available
