5pin 12mm hippo led connector for RGBW RGBY strip

for RGBW,RGBY IP21 non-waterproof or IP65 sealing glue waterproof led strip,solder-less,non-soldering  marketing@gree-leds.com

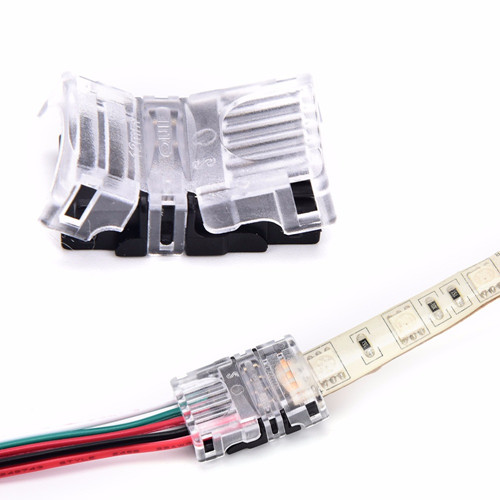

5pin 12mm hippo led connector


4pin 8mm 10mm hippo connector

fastest and most convenient way to connection,welding soldering free,Strip to strip type or Strip to wire type,waterclear Polycarbonate shell

4pin hippo led connector including:
8mm 4pin hippo connector for IP21 non-waterproof flex led tape
8mm 4pin hippo connector for IP65 glue-sealing waterproof flex led tape
10mm 4pin hippo connector for IP21 non-waterproof flex led tape
10mm 4pin hippo connector for IP65 glue-sealing waterproof flex led tape






2PIN Hippo-M Solderless Connector

Hippo-M Connector is an excellent and reliable way of joining LED strip to strip,or strip to cable wire. Simply choose the correct size Hippo connector, insert the strip and close the connector until it latches. This will make a strong physical and electrical connection ensuring a reliable joint.
Note: Once closed the connector cannot be re-used.

2pin hippo led connector including:
5mm 2pin hippo led connector: for 5mm width single color led strip
8mm 2pin hippo led connector: for 8mm width single color led strip
10mm 2pin hippo led connector: for 10mm width single color led strip

All the above hippo connectors have two modes:
for IP21 non-waterproof led strip
for IP65 sealing glue waterproof led strip





8mm 10mm 12mm hippo connector

hippo connector for led flex strip,EZ click-tight led connector,No soldering, hassle-free Hippo clip design,marketing@gree-leds.com
2-Pin & 4-Pin & 5-PIN Available for single color,RGB and RGBW Strip lights,Waterproof & Non-Waterproof Designs!
http://www.gree-leds.com/led-accessories/new-connector-for-led-flex.html

Features:
1. new design brings users the safety
2. fastest and most convenient way to connection.
3. welding-free, arbitrary cutting wire length.
4. No tin is added at the end of the wire, and no insulating skin is peeled off
5.The innovative internal connection structure,better occlusion force and  stable connection.
6.transparent shell,good light transmittance and reduce dark area

Description:
1. IP21 series/IP65 seires available
2. Strip to strip type or Strip to wire type,waterclear Polycarbonate shell.
3. 2Pin is suitable for 5mm/8mm/10mm width single color strip
4. 4Pin is suitable for 10mm/12mm width RGB led strip
5. 5Pin is suitable for 12mm width RGBW/RGBY led strip
6. Conductor cross section:0.35 mm²~0.75 mm²(AWG22~AWG18)
7. wire diameter (including insulation):Φ1.5 mm~Φ 2.1mm
8. Rated current is less than 5A/CH
9. Working ambient temperature: - 20 ~65 degree
10. Package 100Pcs/Bag



2019年1月6日星期日

constant current high lumen high efficiency led tape 80leds/m 140lum/w smd2835

80leds/m 140lum/w SMD2835 constant current high lumen high efficiency led tape
http://www.gree-leds.com/high-light-efficiency-led-tape/constant-current-high-lumen-strips.html
1. Input Voltage 24V
2. 80leds/m,SMD2835 LED,Constant current circuit.
3. Power comsuption 12.0Watt/M
4. Luminuous Flux 140lum/w, 1632lum/m to 1680lum/m
5. CRI90+ available, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7.  10mm width 3OZ Double-layer flexible white PCB.
8.  100mm/3.93" intervals cutting point.
9.  Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11.  3M adhesive tape backing
12.  IP21/IP65/IP67/IP68 available.
13.  CE,Rohs certificate,3years warranty
